ALFA-B 22013MN

ALFA-B 22013MN

by | 2024 Mar 11 | ALFA trailers, ALFA-B open front wheeled single axle trailers with wheelchair, ALFA-B single-axle trailers with brakes, Trailers with brakes

Productions

Front-wheel (MN), open, single-axle braked trailer with fixed sidewall.
Downgrading is possible when ordering in 50kg increments up to 750kg.

Type ALFA-B 22013MN
Total weight (kg) 1000-1300
Own weight (kg) 205
Load capacity (kg) 795-1095
Total weight (kg) 750-800-850-900-1000-1100-1200-1300
Wheel 13″
Internal dimensions (mm) 2005×1250×355
Total size (mm): 2950×1660×870
Axle torsion or leaf spring

Information

  • side walls made of galvanized sheet
  • openable rear door with safety lock
  • galvanized V-shaped chassis
  • approved design switch head
  • floor made of non-slip laminated wood
  • overrun brake with automatic reversing
  • KNOTT chassis with torsion spring
  • Jokon lamp
  • 4 mounting hooks
  • hooking buttons for attaching a tarpaulin
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel

Options

  • LED1 lamp
  • MT wheel clamp stand for 15-21″ wheel
ALFA-B 220145AP.75

ALFA-B 220145AP.75

by | 2024 Mar 13 | ALFA trailers, ALFA-B single-axle trailers with brakes, ALFA-B universal flatbed lower wheel single axle trailers with wheelchair, Trailers with brakes

Productions

Braked, single-axle underwheel (AP) universal flatbed trailer with a wide range of accessories.

Type ALFA-B 220145AP
Total weight (kg) 750
Own weight (kg) 180
Load capacity (kg) 570
Total weight (kg) 750
Wheel 13″-14”
Internal dimensions (mm) 2060×1450
Total size (mm): 3080x1450x700
Axle torsion

Information

  • universal low-wheel passenger car trailer platform, which, thanks to the rich accessories, can also be used as a motorcycle and cargo trailer
  • strong, galvanized chassis with V-shaped tow bar
  • approved design switch head
  • floor made of non-slip laminated wood
  • KNOTT chassis with torsion spring
  • approved design switch head
  • Jokon lamp
  • 4 mounting hooks
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel

*These are flatbed trailers, side walls must be ordered separately!*

Options

  • LED1 lamp
  • Aluminum side false set, all sides can be opened
ALFA-B 22116MP

ALFA-B 22116MP

by | 2024 Mar 12 | ALFA trailers, ALFA-B single-axle trailers with brakes, ALFA-B universal flatbed front-wheel single-axle trailers with wheelchair, Trailers with brakes

Productions

Braked, universal, front wheel (MP), flatbed trailer.
Below a total weight of 900kg, the desired total weight can change in 50kg increments, above 900kg in 100kg increments.

Type ALFA-B 22116MP
Total weight (kg) 1000-1500
Own weight (kg) 190-235-255
Load capacity (kg) function of total weight
Total weight (kg) 750-800-850-900-950-1000-1050-1100-1150-1200-1250-1300-1350-1400-1450-1500
Wheel 13″-14″
Internal dimensions (mm) 2100×1600(300)
Total size (mm): 3070x1950x670
Axle torsion

Information

  • universal front-wheel passenger car trailer platform, which, thanks to the rich accessories, can also be used as a motorcycle and cargo trailer
  • strong, galvanized chassis with V-shaped tow bar
  • approved design switch head
  • floor made of non-slip laminated wood
  • KNOTT chassis with torsion spring
  • approved design switch head
  • Jokon lamp
  • 4 mounting hooks
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel

*These are flatbed trailers, side walls must be ordered separately!*

Options

  • LED1 lamp
  • MT wheel clamp stand for 15-21″ wheel
ALFA-B 22513MN

ALFA-B 22513MN

by | 2024 Mar 11 | ALFA trailers, ALFA-B open front wheeled single axle trailers with wheelchair, ALFA-B single-axle trailers with brakes, Trailers with brakes

Productions

Front-wheel (MN), open, single-axle braked trailer with fixed sidewall.
Downgrading is possible when ordering in 50kg increments up to 750kg.

Type ALFA-B 22513MN
Total weight (kg) 1000-1300
Own weight (kg) 215
Load capacity (kg) 785-1085
Total weight (kg) 750-800-850-900-1000-1100-1200-1300
Wheel 13″
Internal dimensions (mm) 2440x1250x355
Total size (mm): 3370x1660x870
Axle torsion or leaf spring

Information

  • side walls made of galvanized sheet
  • openable rear door with safety lock
  • galvanized V-shaped chassis
  • approved design switch head
  • floor made of non-slip laminated wood
  • overrun brake with automatic reversing
  • KNOTT chassis with torsion spring
  • Jokon lamp
  • 4 mounting hooks
  • hooking buttons for attaching a tarpaulin
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel

Options

  • LED1 lamp
  • MT wheel clamp stand for 15-21″ wheel

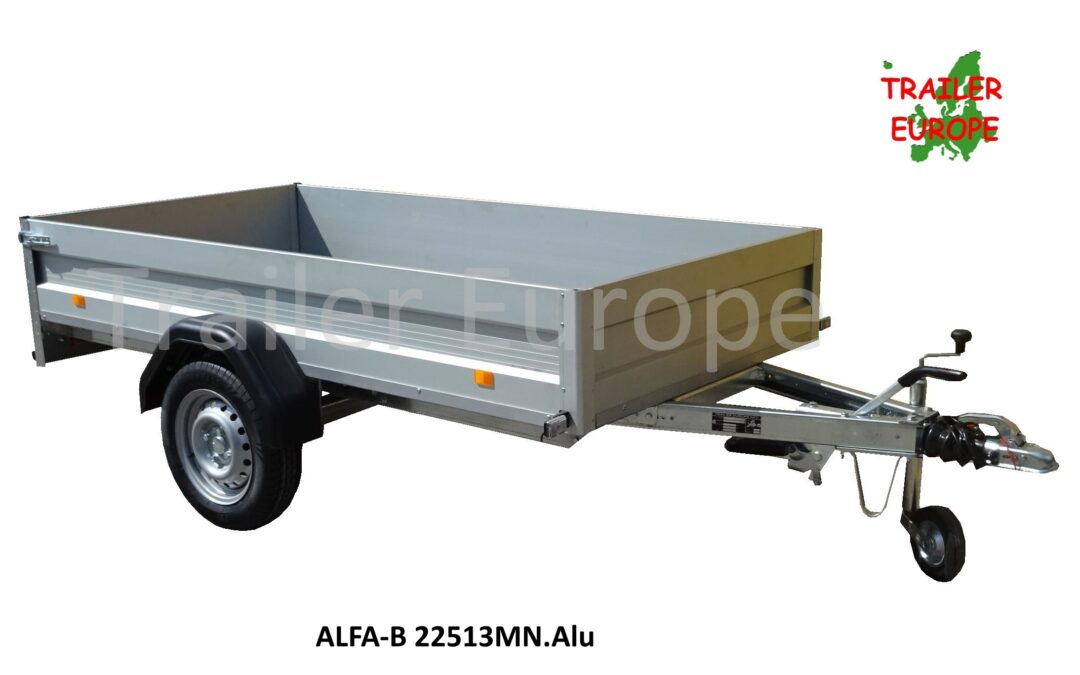

ALFA-B 22513MN.100 Alu

ALFA-B 22513MN.100 Alu

by | 2024 Mar 11 | ALFA aluminium sidewall trailers, ALFA trailers

Productions

Aluminium side wall open trailer without brakes, front wheel (MN), open, single axle with fixed side wall.
MN – open front trailer
Confirmation possible on order in 50kg increments up to 300kg

Type ALFA-B 22513MN.100 Alu
Total weight (kg) 1000
Own weight (kg) 225
Load capacity (kg) 775
Total weight (kg) 750-800-850-900-950-1000
Wheel 13″
Internal dimensions (mm) 2450x1260x350
Total size (mm): 3370x1660x870
Axle torsion

Information

  • side walls in 350mm double-walled aluminium profile

  • opening rear door with safety lock

  • galvanised V-shaped chassis

  • approved switch head construction

  • non-slip plywood floor

  • KNOTT torsion or leaf-spring suspension

  • Jokon analogue lamp

  • 4 fixing clamps

  • for attaching hooks to tarpaulins

  • 12 V electric system

  • 7-pin adapter

  • 13″ wheel

Options

  • strengthened axle (1000kg)

  • leaf spring axle

  • LED1 light
