ALFA-B 22515MN

ALFA-B 22515MN

by | 2024 Mar 11 | ALFA trailers, ALFA-B open front wheeled single axle trailers with wheelchair, ALFA-B single-axle trailers with brakes, Trailers with brakes

Productions

Front-wheel (MN), open, single-axle braked trailer with fixed sidewall.
Downgrading is possible when ordering in 50kg increments up to 750kg.

Type ALFA-B 22515MN
Total weight (kg) 1000-1500
Own weight (kg) 245
Load capacity (kg) 755-1255
Total weight (kg) 750-800-850-900-1000-1100-1200-1300-1400-1500
Wheel 13″
Internal dimensions (mm) 2440x1440x355
Total size (mm): 3350x1850x870
Axle torsion or leaf spring

Information

  • side walls made of galvanized sheet
  • openable rear door with safety lock
  • galvanized V-shaped chassis
  • approved design switch head
  • floor made of non-slip laminated wood
  • overrun brake with automatic reversing
  • KNOTT chassis with torsion spring
  • Jokon lamp
  • 4 mounting hooks
  • hooking buttons for attaching a tarpaulin
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel

Options

  • LED1 lamp
  • MT wheel clamp stand for 15-21″ wheel

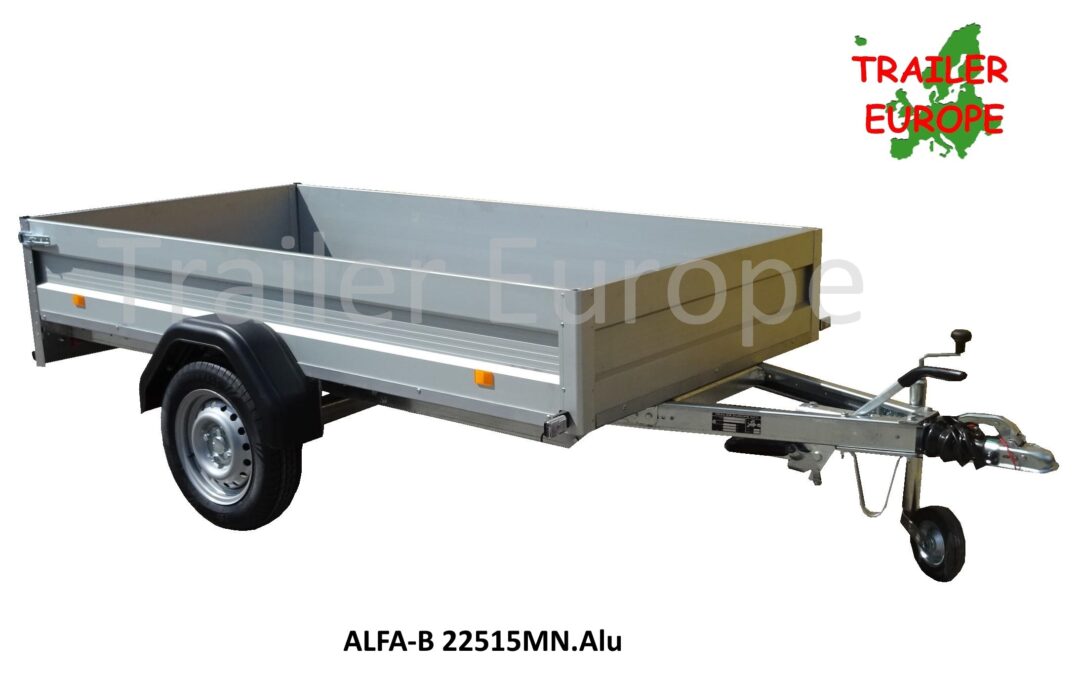

ALFA-B 22515MN.100 Alu

ALFA-B 22515MN.100 Alu

by | 2024 Mar 11 | ALFA aluminium sidewall trailers, ALFA trailers

Productions

Aluminium side wall open trailer without brakes, front wheel (MN), open, single axle with fixed side wall.
MN – open front trailer
Confirmation possible on order in 50kg increments up to 300kg

Type ALFA -B 22515MN.100 Alu
Total weight (kg) 1000
Own weight (kg) 245
Load capacity (kg) 755
Total weight (kg) 750-800-850-900-950-1000
Wheel 13″
Internal dimensions (mm) 2450x1450x350
Total size (mm): 3350x1850x870
Axle torsion

Information

  • side walls in 350mm double-walled aluminium profile

  • opening rear door with safety lock

  • galvanised V-shaped chassis

  • approved switch head construction

  • non-slip plywood floor

  • KNOTT torsion or leaf-spring suspension

  • Jokon analogue lamp

  • 4 fixing clamps

  • for attaching hooks to tarpaulins

  • 12 V electric system

  • 7-pin adapter

  • 13″ wheel

Options

  • LED1 light
ALFA-B 22516AP

ALFA-B 22516AP

by | 2024 Mar 13 | ALFA trailers, ALFA-B single-axle trailers with brakes, ALFA-B universal flatbed lower wheel single axle trailers with wheelchair, Trailers with brakes

Productions

Braked, single axle front wheel (AP) universal flatbed trailer.

Below a total weight of 900kg, the desired total weight can change in 50kg increments, above 900kg in 100kg increments.

It can be ordered in a total weight of 750 – 1500 kg.

Type ALFA-B 22516AP
Total weight (kg) 1300-1500
Own weight (kg) 255-275
Load capacity (kg) function of total weight
Total weight (kg) 750-800-850-900-1000-1100-1200-1300-1400-1500
Wheel 10″
Internal dimensions (mm) 2560×1450
Total size (mm): 3720x1600x585
Axle torsion

Information

  • universal low-wheel passenger car trailer platform, which, thanks to the rich accessories, can also be used as a motorcycle and cargo trailer
  • strong, galvanized chassis with V-shaped tow bar
  • approved design switch head
  • floor made of non-slip laminated wood
  • KNOTT chassis with torsion spring
  • approved design switch head
  • Jokon lamp
  • 4 mounting hooks
  • 12 V electrical system
  • 13-pin adapter
  • 10” wheel

*These are flatbed trailers, side walls must be ordered separately!*

Options

  • LED1 lamp
  • Aluminum side false set, all sides can be opened
ALFA-B 22516MP

ALFA-B 22516MP

by | 2024 Mar 12 | ALFA trailers, ALFA-B single-axle trailers with brakes, ALFA-B universal flatbed front-wheel single-axle trailers with wheelchair, Trailers with brakes

Productions

Braked, single axle front wheel (MP) universal flatbed trailer.

Universal passenger car trailer flatbed, which can be used as a motorcycle and cargo trailer thanks to the rich accessories.

Below a total weight of 900kg, the desired total weight can change in 50kg increments, above 900kg in 100kg increments.

Type ALFA-B 22516MP
Total weight (kg) 750-1000-1300-1500
Own weight (kg) 205-250-255-275
Load capacity (kg) function of total weight
Total weight (kg) 750-800-850-900-950-1000-1050-1100-1150-1200-1250-1300-1350-1400-1450-1500
Wheel 13″-14″
Internal dimensions (mm) 2560×1600(300)
Total size (mm): 3720x1990x670
Axle torsion

Information

  • universal front-wheel passenger car trailer platform, which, thanks to the rich accessories, can also be used as a motorcycle and cargo trailer
  • strong, galvanized chassis with V-shaped tow bar
  • approved design switch head
  • floor made of non-slip laminated wood
  • KNOTT chassis with torsion spring
  • approved design switch head
  • Jokon lamp
  • 4 mounting hooks
  • 12 V electrical system
  • 13-pin adapter
  • 13” wheel


*These are flatbed trailers, side walls must be ordered separately!*

Options

  • LED1 lamp
  • MT wheel clamp stand for 15-21″ wheel
ALFA-B 22518AP 10”

ALFA-B 22518AP 10”

by | 2024 Mar 13 | ALFA trailers, ALFA universal platform trailers, ALFA-B universal flatbed lower wheel single axle trailers with wheelchair

Productions

Universal platform with lower wheels and brakes. The trailer has a total weight of 1500 kg.
Below a total weight of 900 kg, the desired total weight can change in increments of 50 kg, above 900 kg in increments of 100 kg.

Type ALFA-B 22518AP 10”
Total weight (kg) 1300-1500
Own weight (kg) 275 – 300
Load capacity (kg) function of total weight
Total weight (kg) 750-800-850-900-1000-1100-1200-1300-1400-1500
Wheel 195/55 R10C
Internal dimensions (mm) 2560×1800(300)
Total size (mm): 3720x1800x585
Axle torsion

Information

  • universal low-wheel passenger car trailer platform, which can be used as a motorcycle and cargo trailer thanks to the rich accessories
  • strong, galvanized chassis with V-shaped drawbar
  • switch head with authorized structure
  • floor made of non-slip laminated wood
  • KNOTT chassis with torsion springs
  • switch head with authorized structure
  • Jokon lamp
  • 4 mounting hooks
  • 12 V electrical system
  • 13-pin adapter
  • 10” wheel

Options

  • LED1 lamp
  • All sides can be opened
